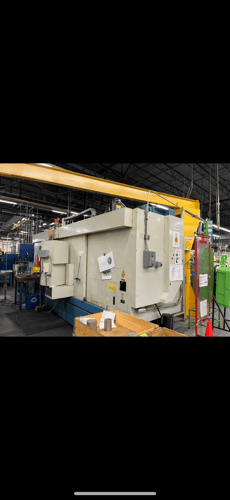

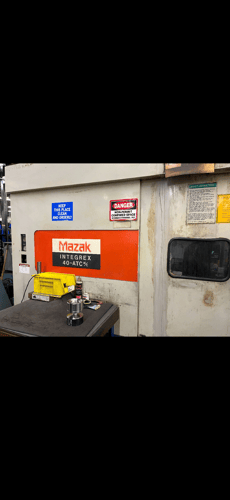

MAZAK INTEGREX 40MC LATHE (5 AXIS)

YEAR: 1993

SPECIFICATIONS:
Control:       Mazak Fusion 640MT

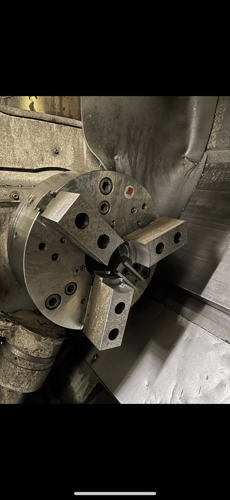

Chuck Size: 12"
Swing:          22"
Spindle Speed: 3000 RPM
Spindle Motor: 40/30 HP
Rotary Speed:   3000 RPM
Rotary Motor:   15/ 9 HP
Max Turning Length: 60"
X Travel:        24"
Z Travel:        63.5"
Tools:            40 ATC
B Axis Travel:  +- 70mm
C Axis Resolution:  .001
Chip Conveyor
Tailstock
